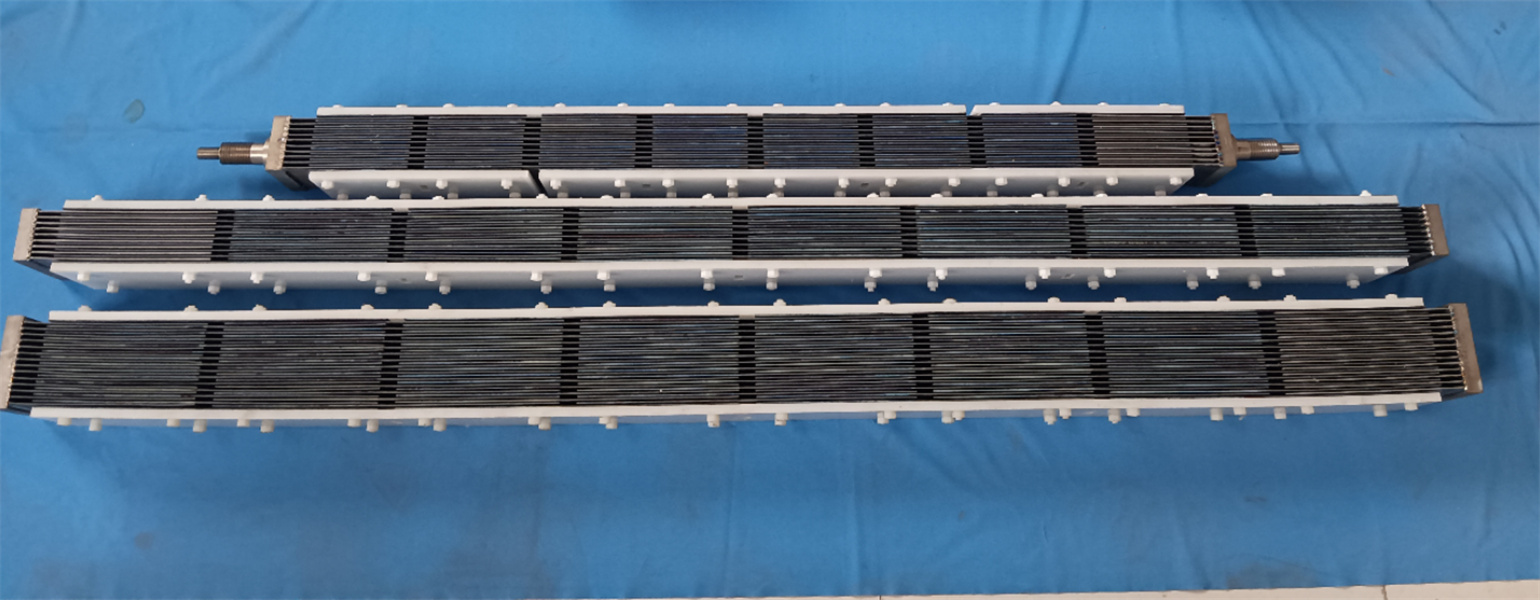

Titanium Anode with Ruthenium and Iridium coating
Introduction:
Titanium anode (MOx anode) is made of ruthenium, iridium, tantalum, rhodium, palladium and other precious metal salts coated on a titanium substrate and then sintered at high temperature.
1.The size of the titanium anode is stable, and the distance between the electrodes does not change during the electrolysis process, which can ensure that the electrolysis operation is performed under the condition of stable voltage.
2. The working voltage of the titanium anode is low, so the power consumption is small, which can save the power consumption, and the DC power consumption can be reduced by 10%-20%.
3. Titanium anode has a long working life, the life time can be customized from 3 years to 10years
Model:
| | EC-1K | EC-2K | EC-3K | EC-5K | EC-8K |
| Capacity | 1Kg/h | 2Kg/h | 3Kg/h | 5Kg/h | 8Kg/h |
| Brine concentration | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% |
| Input current | 135~180A | 280~360A | 400~500A | 650~800A | 1000~1200A |
| Input voltage | 28~32V | 28~32V | 28~32V | 28~32V | 28~32V |
| NaClO concentration | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm |
| NaClO output flow | 125~200L/h | 250~400L/h | 375~600L/h | 625~1000L/h | 1000~1600L/h |
Features
1) Effective& environment-friendly method
2) High anti-corrosion property
3) High current efficiency property
4) Low chlorine evolution voltage
5) High catalytic property
6) Long lifetime
7) Light weight electrodes
Keep the operating voltage stably
Applications:
1) Organic sewage treatment,
2) Chemical sewage treatment,
3) Pesticide sewage treatment,
4) Drinking water disinfection,
5) Bleaching & dyeing,
6) Swimming pool water
7) Domestic sewage treatment,
8) Hospital sewage treatment,
9) Food industry disinfection
Industrial waste water treatment,etc
